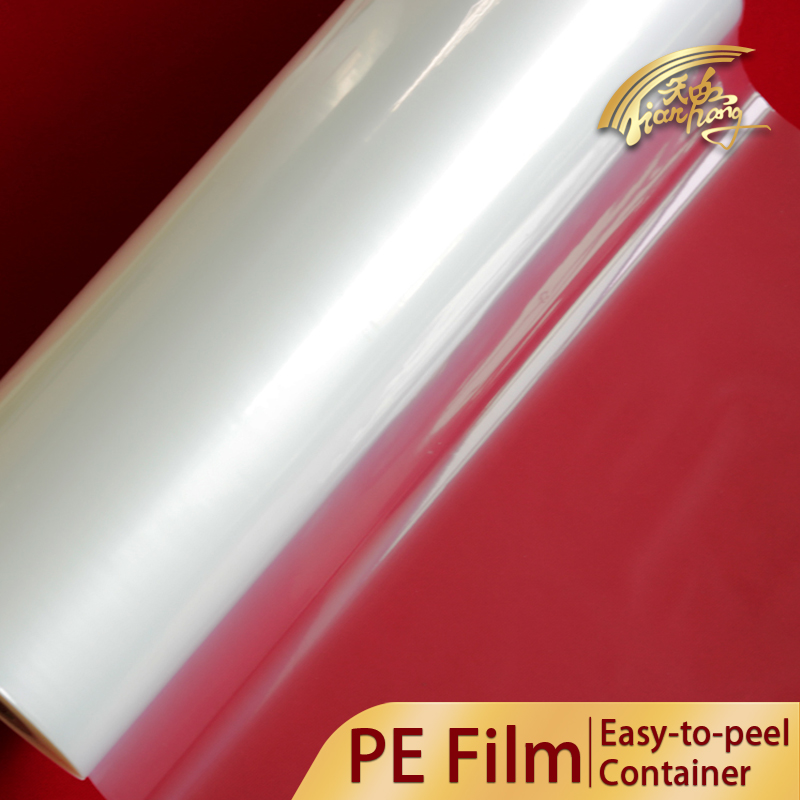

IPE Film for Easy-Peel Lid Packaging: Process-Adjustable for Multi-Material Compatibility + Easy-Peel & No Residue, Reconstructing the Consumer Experience of Cup Products
●
In the cup-based food and beverage industry, balancing "reliable sealing" and "convenient opening" has always been a core challenge in packaging design. Traditional films often have fixed processes that cannot adapt to the heat-sealing requirements of different cup materials, leading to heat-sealing failure or uncontrolled peeling force. This leaves consumers facing problems such as "unopenable" or "torn and leaky" packaging, or even adhesive residues. The core advantage of our IPE film specifically designed for easy-peel lid packaging lies in its adjustable processes—it can be tailored to fit five mainstream cup materials (PE/Polyethylene, PP/Polypropylene, PET/Polyethylene Terephthalate, PVC/Polyvinyl Chloride, and PS/Polystyrene) without replacing the film substrate. Only by fine-tuning the heat-sealing layer formula and interface treatment process can it achieve the dual effects of "strong sealing" and "easy-peel with no residue", providing flexible and customized packaging solutions for different cup-based products such as milk tea, yogurt, hot drinks, and jelly.
1
Differentiated Process Adjustments: Targeted Compatibility with Five Cup Materials
To address differences in melting points, surface tension, and heat-sealing characteristics of different cup materials, we have established a "material-process" matching system, achieving precise compatibility through three core process adjustments:
●
For low-melting-point PE/PP cups (melting point 110–160℃): A "low-temperature heat-sealing layer" formula is adopted. Low-melting-point modified IPE resin is integrated during multi-layer co-extrusion, controlling the heat-sealing temperature at 80–100℃ to ensure the heat-sealing layer melts quickly without damaging the cup. Meanwhile, by adjusting molecular crystallinity, the peeling force is stabilized at 6–10N, balancing sealing and easy peeling.
●
For medium-to-high-melting-point PET/PS cups (melting point 220–260℃): The "high-temperature-resistant heat-sealing layer" is upgraded. High-temperature-resistant additives are added to improve the heat resistance of the heat-sealing layer, and the heat-sealing temperature is adjusted to 110–130℃. Combined with a slight adjustment of the substrate thickness (increased to 25–30μm), the heat-sealing strength is enhanced to prevent film embrittlement at high temperatures, while the peeling force remains at 8–14N.
●
For low-surface-tension PVC cups: An additional "interface activation" process is added. Plasma treatment is used to optimize the surface tension of the film's heat-sealing surface, improving adhesion to PVC cups. At the same time, the heat-sealing pressure is adjusted (from 0.3MPa to 0.5MPa) to avoid bubbles and delamination after heat-sealing, ensuring sealing integrity.
★
Key Benefit: There is no need to develop a new film for different cup materials. With the above process fine-tunings, the heat-sealing needs of all cup types can be met, completely solving the production pain point for enterprises of "needing to change films when changing cup materials" and reducing procurement and inventory costs.
2
Core Advantage of Easy-Peel with No Residue: Process-Adjustable for Convenience and Cleanliness
The core of easy-peel performance lies in "controllable peeling force". We achieve consistent easy-peel experiences across different cup materials through process adjustments:
●
For smooth-surfaced cups (PE/PP/PET): The thickness of the anti-adhesion coating is adjusted (controlled at 1–2μm) to prevent excessive fusion between the film and the cup mouth, ensuring no adhesive residue during peeling.
●
For slightly rough-surfaced cups (PS/PVC): The heat-sealing time is optimized (from 1–1.5 seconds to 1.5–2 seconds) to form a uniformly bonded sealing surface between the heat-sealing layer and the cup mouth, avoiding the problem of "torn cup mouths" caused by local over-adhesion.
★
Consumers can easily lift the film with a single hand applying 5–12N of force, no tools required, making it convenient for the elderly and children to use. For example, when packaging yogurt cups (PP material), the film can be lifted completely in one go without residue sticking to the yogurt. When packaging hot drink cups (PET material), the easy-peel design reduces the risk of hot drink spills caused by excessive force, enhancing usage safety.
3
Strong Sealing Performance: No Compromise on Sealing with Process Adjustments
The core of process adjustments is "adaptation rather than compromise". Regardless of the cup material, the film consistently maintains reliable sealing performance:
●
Basic sealing guarantee: The middle layer uses a high-density IPE substrate, combined with a precision embossing process to form a tight sealing structure that effectively blocks air, moisture, and external contaminants, preventing content spoilage.
●
Targeted enhancement: For milk tea cups (PE material, with granular ingredients), the heat-sealing width is fine-tuned to enhance the seal's extrusion resistance, preventing leakage during transportation. For refrigerated yogurt cups (PS material), the barrier effect is optimized to extend shelf life.
✔
All process adjustments are based on food-grade raw materials, complying with FDA, EU 10/2011, and GB 4806.6 standards. They contain no plasticizers or fluorescent agents, and no harmful substances are released during short-term microwave heating (≤15 seconds), making them suitable for direct contact with various food and beverage products.
4
Compatibility with Commercial Production: Process-Adjustable for Enhanced Enterprise Efficiency
To meet the diverse needs of automated production lines for cup-based products, our process adjustments offer the advantage of "rapid response":
●
No production line modification required: Only the temperature and pressure parameters of the sealing machine need to be adjusted according to the cup material (e.g., 80℃ and 0.3MPa for PE cups, 120℃ and 0.4MPa for PET cups). There is no need to replace equipment or film substrates, increasing switching efficiency by 60%.
●
Stable mass production guarantee: Using a five-layer co-extrusion blown film process, the thickness uniformity of the film is controlled within ±1.2μm regardless of the process adjustment plan. It can smoothly pass through high-speed automatic sealing machines processing 150–200 cups per minute, with no wrinkles or jamming during transportation, and a production loss rate of less than 0.5%.
●
Compatible with customized printing: The film surface supports flexographic and gravure printing. Process adjustments do not affect printing adhesion (still reaching level 4B). Brand logos, flavor labels, and "easy-peel edge" arrow guides can be customized, and patterns remain clear and do not peel off after refrigeration or heating, balancing production efficiency and brand image transmission.
💬
Frequently Asked Questions (FAQ)
Q1
Can one IPE film really be compatible with all five cup materials — PE, PP, PET, PVC, and PS?
Yes. Our IPE film achieves compatibility with all five mainstream cup materials through targeted process adjustments — including fine-tuning the heat-sealing layer formula, substrate thickness, interface activation treatment, and sealing parameters — without requiring a change in the film substrate itself. This eliminates the need for enterprises to stock multiple film types for different cup materials.
Q2
What is the typical peeling force range, and is it suitable for elderly and children users?
The peeling force is precisely controlled between 5–14N depending on the cup material and process configuration. For most consumer applications, the peel force is maintained at 5–12N, which allows easy single-hand opening without tools — making it comfortable and safe for elderly users and children alike.
Q3
Will there be any adhesive residue left on the cup mouth after peeling?
No. The film is engineered with an anti-adhesion coating (1–2μm for smooth cup surfaces) and optimized heat-sealing time for rougher cup surfaces. These adjustments ensure a clean peel every time — no adhesive residue remains on the cup mouth, maintaining hygiene and a premium consumer experience.
Q4
Does this IPE film meet food safety and regulatory standards?
Absolutely. All formulations are based on food-grade raw materials and comply with internationally recognized standards including FDA (USA), EU 10/2011 (Europe), and GB 4806.6 (China). The film contains no plasticizers or fluorescent agents, and is safe for short-term microwave heating (≤15 seconds) with no harmful substance release.
Q5
Do we need to modify our existing production line or sealing equipment to use this film?
No equipment modification is needed. You only need to adjust the temperature and pressure parameters on your existing sealing machine to match the target cup material (e.g., 80℃ / 0.3MPa for PE cups; 120℃ / 0.4MPa for PET cups). This simple parameter switch increases changeover efficiency by up to 60%, with no downtime for equipment replacement.
Q6
Can the film be customized with brand logos, flavor labels, or opening guide arrows?
Yes. The film surface is fully compatible with both flexographic and gravure printing methods. Custom printing — including brand logos, flavor labels, QR codes, and "easy-peel edge" arrow guides — is supported without affecting printing adhesion (maintained at level 4B). Printed graphics remain sharp and intact under both refrigeration and heating conditions.
